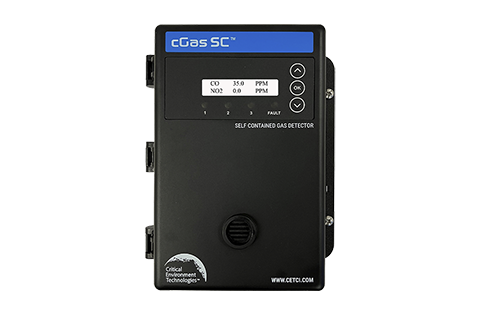

cGas-SC Self-Contained Controller
A self contained controller with up to 3 gas channels, Plug & Play Smart Sensor Technology and configurable logic control and priority settings. Offers superior user customization and reliable gas detection performance for monitoring many gases.
- Up to 3 gas channels with flexible internal and / or remote sensor configurations
- Pre-calibrated Plug & Play Smart Sensor replacement at end of life
- 2x16 character LCD display with LED indicators
- Easy access push buttons on the front of the enclosure for configuration and calibration
Description
The CGAS-SC Self-Contained Controller is a versatile gas detector that offers up to 3 channels for monitoring toxic, combustible and refrigerant gases in commercial and light industrial, non-hazardous (non-explosion rated) environments.
It can be used as a standalone monitoring device or part of a larger gas detection system. It accepts 4-20 mA analog inputs and all models feature field configurable BACnet® or Modbus® output for communicating with a controller or a BAS.
Sensor configurations include combinations of internal and/or remote sensors, including 3 remote or 1 internal + 2 remote sensors. Plug & Play Smart Sensor technology makes replacing the pre-calibrated sensors quick and easy.
Standard features include two high voltage SPDT dry contact relays with field configurable time delays and trigger levels, one horn and strobe connection, a field selectable internal audible alarm, an LCD display with LED indicators for channel alarm status and fault conditions and an intuitive menu system with password protection. Enhanced logic control with 8 priorities/zoning capabilities allows flexibility in configuration and operation.
Specialized optional features include, two 4 - 20 mA outputs that can be used for VFD control, RH and temperature monitoring, low temperature operation, side mounted strobe, extra loud or water tight side mounted buzzer and wash-down / water spray protection. Including Option -DV upgrades the standard model to support dual voltage inputs by adding line voltage capability.
Specifications
Input/Output
| Input | 4 - 20 mA analog |
| Output | Up to two analog outputs for VFD control Jumper selectable current or voltage (4 - 20 mA, 0 - 10 V, 2 - 10 V, etc.) User selectable BACnet® MS/TP (version 1 rev 14) RS-485 or Modbus® RTU (version 1.1b3) RS-485 |
| Relay | 2 internal SPDT dry contact relays, rated 5 amps @ 240 VAC |
| Audible Alarm | Standard internal buzzer, rated 76 dB @ 3 m (10 ft) Optional loud, side mounted buzzer (Option -A), rated 90 dB @ 30 cm (1 ft), Optional watertight, side mounted buzzer (Option -WA), rated 85 dB @ 60.96 cm (2 ft) Temporal 4 sound pattern |
| Horn/Strobe | Connection for remote strobe/horn or optional side mounted strobe with audible (Option-L2), 40 mm / 2 in dia, 80 flashes per min, siren volume 85 dB, drip proof |
| RH & Temperature | User selectable (°C or °F) RH & Temp sensor (optional) |
Target Gas
| Electrochemical Sensors | Carbon monoxide, Ethylene (C2H4), Chlorine (Cl2), Hydrogen sulphide (H2S), Nitric oxide (NO), Nitrogen dioxide (NO2), Oxygen (O2), Sulphur dioxide (SO2) |
| Infrared Sensors | Carbon dioxide (CO2) |
| Catalytic Sensors (remote only) | Any ESH-A Remote Sensor or CGAS-A Methane, Propane or Hydrogen gas detector |
| PID Sensors (remote only) | Any ESH-A Remote Sensor or CGAS-A TVOC |
| Refrigerants Sensors (remote only) | Any CGAS-A or CGAS-AP infrared or solid state refrigerant gas detector |
Mechanical
| Enclosure | Black ABS / Polycarbonate, corrosion resistant, IP54 rated with standard splash guard installed (Option -S) |
| Weight | 750 g / 1.65 lbs 1 kg / 2.2 lbs (with line voltage) |
| Size | 20.3 x 15.4 x 8 cm 8 x 6.07 x 3.16 in |
User Interface
| Display | LCD display 2 x 16 characters with LED panel indicating alarm status 1, 2 and 3 for any channel and FAULT |
| Push Button | Initiate calibration and menu options with UP, DOWN and ENTER push buttons |
| USB Port | Internal port for USB memory stick for configuration changes and firmware upgrades |
Electrical
| Power Requirement | Low Voltage (standard): 16 - 30 VDC or 12 - 28 VAC, 10 W max, Class 2 Add Line Voltage (Option -DV): 100-240V AC +/-10%, 50/60 Hz, 10W, 1-phase to upgrade the standard model to support dual voltage inputs |
| Wiring | Low Voltage (standard): 24 VDC or 24 VAC 2-conductor, 16 - 18 AWG shielded, stranded within conduit Line Voltage (optional): VAC 3-conductor (Line, Neutral, Ground) shielded, stranded 16 - 18 AWG within conduit LAN Modbus® RTU RS-485 4-conductor, 18 - 22 AWG twisted, shielded, stranded WAN (output to BAS) Modbus® RTU (version 1.1b3) RS-485 or BACnet® MS/TP (version 1 rev 14) RS-485 4-conductor, 18 - 22 AWG twisted, shielded, stranded |
| Fuse(s) | Thermal, resetting |
Environmental
| Operating Temperature | 0°C to 40°C (32°F to 104°F) temperatures below 0°C / 32°F require low temperature package (Option-LT) |
| Operating Humidity | 15 - 95% RH non-condensing |
Certifications
| Conforms to: | CSA-C22.2 No 61010-1, UL 61010-1 (Edition 3) Listed by BTL RoHS compliant circuit boards |
| CO and NO2 Sensor Complies with | UL2075, 2nd Edition, Standard for Gas and Vapour Detectors and Sensors |
Applications
Detected Gases
cGas-SC Self-Contained Controller Options
174 options available
