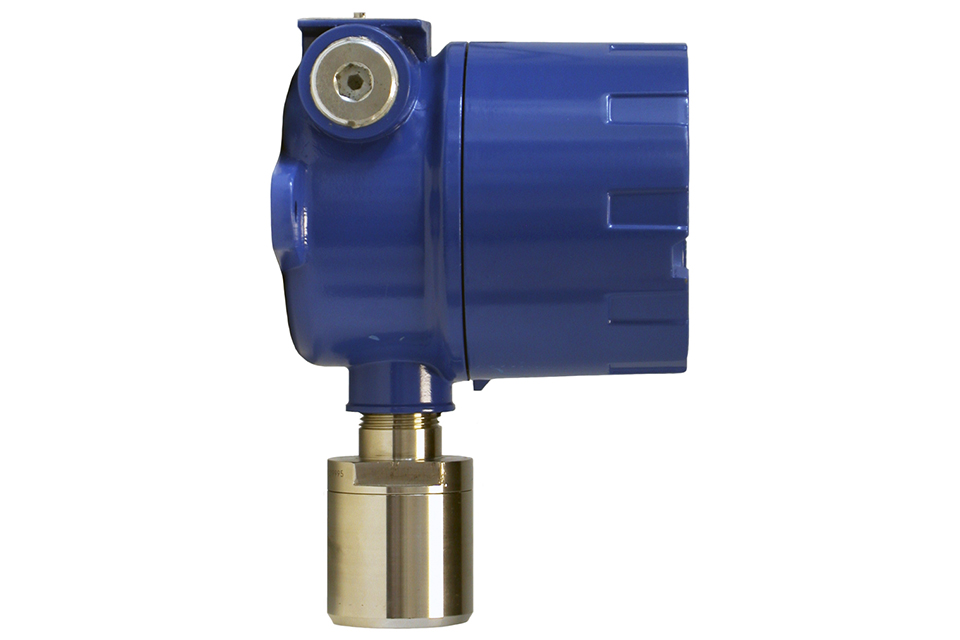

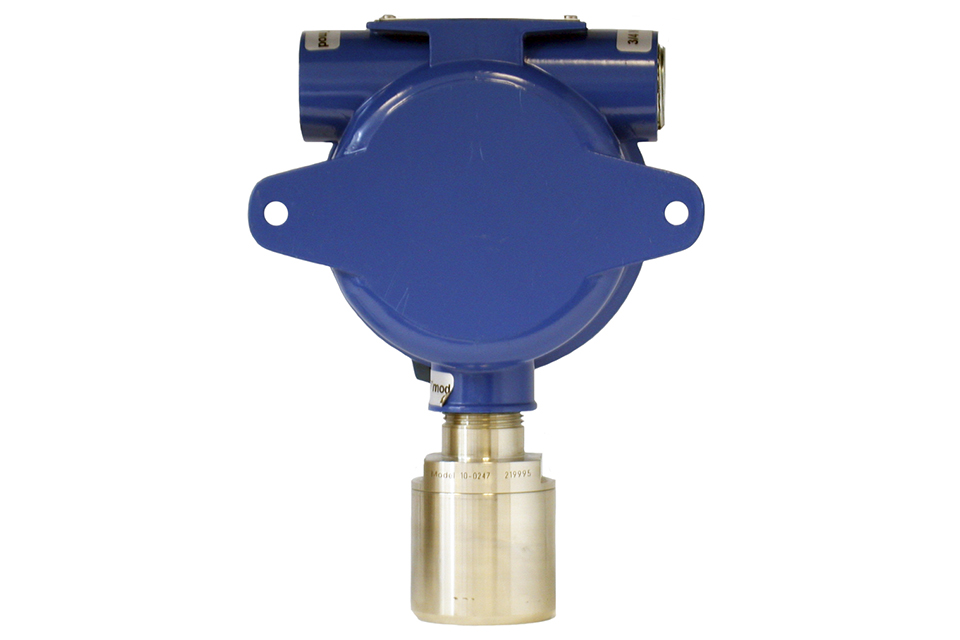

CXT2 Explosion Proof Transmitter
Reliable, accurate monitoring of toxic or combustible gases in potentially explosive and harsh environments, including hazardous-rated areas.
- Single channel, internal or remote
- Remote sensor mount up to 4,000 ft / 1,219 m
- 4 - 20 mA analog or Modbus® digital outputs
- Three 5A @ 30 VDC or 240 VAC relays (available with digital internal sensor models)
Description
The CXT2 Explosion Proof transmitter is a single channel transmitter that reliably and accurately monitors toxic, oxygen, combustible, VOC or CO2 gas concentrations in potentially explosive and harsh environments, including classified hazardous rated areas. It can be connected to a controller (FCS), a control panel or a BAS / BMS / DDC system.
The colour, backlit LCD display changes with alarm status. Navigation through the menu is driven by a magnetic keypad and the user can change alarm set points, instrument configurations and enter into maintenance mode for non-intrusive calibration without opening the enclosure. The security menu allows entry of an authorization code to lock critical parameters.
It features non-volatile memory to store historical monitoring and calibration data and the real-time clock and calendar flag all alarm and calibration events. The CXT2 has the latest Smart Sensor technology and provides sensor life indications and smarter gas detection with simplified solutions and easy calibration. Optional features include an internal heater for low temperature applications.
Specifications
Target Gas
| Electrochemical Sensors (internal) | Ammonia (NH3), Carbon monoxide (CO), Chlorine (CL2), Hydrogen (H2), Hydrogen chloride, Hydrogen sulphide (H2S), Nitrogen dioxide (NO2), Oxygen (O2), Sulphur dioxide (SO2) |
| Infrared Sensors (internal) | Carbon dioxide (CO2), Butane (C4H10), Ethanol (C2H6O), Hexane (C6H14), Toluene (C7H8), Methane (CH4), Propane (C3H8) |
| Catalytic Sensors (internal or remote) | Acetylene (C2H2), Butane (C4H10), Ethylene (C2H4), Hydrogen (H2), Methane (CH4), Propane (C3H8), Pentane (C5H12) |
| PID Sensors (internal) | Acetaldehyde (C2H4O), Benzene (C6H6), Ethyl Alcohol (C2H6O), Isobutylene (C4H8), other gases may be available upon request |
Mechanical
| Enclosure | Durable cast aluminum explosion proof, IP65 or IP66 with splash guard installed Division 1 & 2, Class 1, Groups A, B, C, D |
| Weight | 2.18 kg / 4.8 lbs |
| Size | 12.7 cm x 12.7 cm / 5.0 " x 5.0" |
User Interface
| Display | 5.4 x 3.1 cm / 2.1 x 1.2 in, 64x128 pixels Backlit, LCD graphic display for gas readings, 30 minute trends or bar graph, channel status backlit colour changes |
| Front Panel | Magnetic touch pads, LED indicator lights for RX and TX communication status |
| Security Mode | Locks out critical parameters, offers password protection |
| Memory | Non-volatile E2 memory retains configuration values on power outages |
| Calibration | Non-intrusive calibration and menu navigation with magnetic wand (p/n: CET-MW) |
Input/Output
| Analog Output | Analog - 4-20 mA (3-wire 4-20 mA current source 750 ohms max with nominal 24VDC power supply) |
| Digital Output | Digital - Modbus® RS-485 master/slave ports |
| Relay | Three programmable Form C (SPDT) relays rated for 5 amp at 30 VDC or 240 VAC resistive alarm relays (optional for CXT2-D models only) |
Electrical
| Power Requirement | 10 - 30 VDC, 250 mA @ 24 VDC, 6.5 watts with relay board (all relays energized) |
| Power Consumption | Relays / RS485 Modbus Option Board: 40 mA per relay (120 mA total with all 3 energized); RS-485 use adds 20 mA |
| Wiring (digital) | VDC 4-conductor 18 - 22 AWG twisted, shielded, stranded within conduit network wiring (daisy-chain) |
| Wiring (anolog) | VDC 3-conductor 16 - 18 AWG shielded, stranded within conduit |
Environmental
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) With optional Arctic Heater Smart Sensors operates down to -55°C (-67°F) |
| Operating Humidity | 5 - 90% RH non-condensing |
Certifications
| Conforms to | Class 1, Div, 1, Groups A, B, C, D; Class 1, Zone 1, Group IIC, T4 Class 1, Div, 2, Groups A, B, C, D; Class 1, Zone 2, Group IIC, T4 Models with electrochemical sensor types CL2, NH3 and NO2 are Class 1, Div 2 and come with a splash guard. RoHS compliant circuit boards |
Hazardous Area
| T Class Rating | Temperature Code T4 |
Applications
Detected Gases
Configure Your CXT2 Explosion Proof Transmitter
Select options below to filter configurations.70 configurations available
Showing 1–20 of 70 configurations
CXT2-A-NO2-S
CXT2 Analog Nitrogen Dioxide (NO2) Transmitter 0-100ppm, Catalytic, w/ Splash Guard (or equal)
CXT2-A-CC2H2
CXT2 Analog Acetylene (C2H2) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-A-CC4H10
CXT2 Analog Butane (C4H10) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-A-CC2H4
CXT2 Analog Ethylene (C2H4) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-A-CC2H6O
CXT2 Analog Ethanol (C2H6O) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-A-CC3H8
CXT2 Analog Propane (C3H8) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-A-CC3H8-S
CXT2 Analog Propane (C3H8) Transmitter 0-100%LEL, Catalytic, w/ Splash Guard (or equal)
CXT2-A-IC8H10
CXT2 Analog Xylene (C8H10) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-A-CC5H12
CXT2 Analog Pentane (C5H12) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-A-CCH4
CXT2 Analog Methane (CH4) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-D-CCH4
CXT2 Digital Methane (CH4) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-D-IC8H10
CXT2 Digital Xylene (C8H10) Transmitter 0-100%LEL, Catalytic (or equal)
CXT2-D-PID
CXT2 Digital PID Transmitter, Gas and Range Specified at Time of Quote (or equal)
CXT2-A-PID
CXT2 Analog PID Transmitter, Gas and Range Specified at Time of Quote (or equal)
CXT2-A-NH3-S
CXT2 Analog Ammonia (NH3) Transmitter, w/ Splash Guard (or equal)
CXT2-A-ETVOC
CXT2 Analog Total Volatile Organic Compounds (TVOC) Transmitter 0-20ppm (or equal)
CXT2-D-R-CCH4
CXT2 Digital Methane (CH4) Transmitter 0-100%LEL, Catalytic, Remote Sensor (or equal)
CXT2-D-IC3H6O
CXT2 Digital Acetone (C3H6O) Transmitter, Infrared, w/ 3 Relays (or equal)
CXT2-D-IC3H6
CXT2 Digital Propylene (C3H6) Transmitter, Infrared, w/ 3 Relays (or equal)
CXT2-D-CC3H8
CXT2 Digital Propane (C3H8) Transmitter, Catalytic, w/ 3 Relays (or equal)
Not all configurations are listed here. Contact our sales team to discuss your specific requirements.
