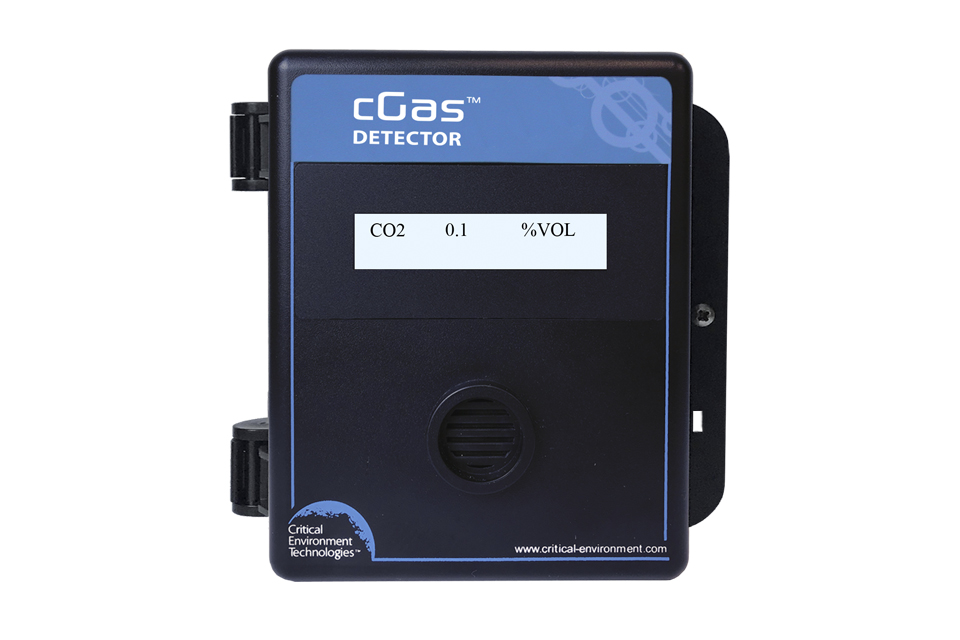

cGas Detector Analog Transmitter

For monitoring: Ammonia, Carbon monoxide, Carbon dioxide, Chlorine, Ethylene, Ethylene oxide, Formaldehyde, Hydrogen, Hydrogen fluoride, Hydrogen sulphide, Nitric oxide, Nitrogen dioxide, Oxygen, Ozone, Sulfur dioxide, Ethanol, Dimethyl ether, Methanol, Methane, Propane, Hydrogen, TVOCs, Refrigerants

Single channel, analog gas detector with Plug & Play Smart Sensor Technology

Applications

  • Parking Facilities / Vehicle Repair Shops
  • Ice Arenas / Swimming Pools
  • Refrigeration Rooms / Chiller Rooms
  • Battery Charging Rooms
  • Manufacturing Plants
  • Maintenance Facilities
  • Greenhouses
  • CO2 Fire Suppression
  • CO2 Storage Rooms
  • CO2 Refrigeration Systems
  • Microdistilleries
  • Chemical Plants
  • Perfume/Beauty Products Manufacturing
  • Household Products Manufacturing
  • Sewage Treatment Facilities
  • and many more...

Key Features

  • One 4-20 mA analog output or jumper selectable 0-10 or 2-10 volts
  • Easy Plug & Play Smart Sensor replacement at end of life, comes pre-calibrated
  • Bright LCD display
  • Optional internal 2A SPDT dry contact relay, with or without internal buzzer (Option -RBZ or Option -RLY)
  • Optional low temperature operation package (Option -LT)
  • Optional factory installed splash guard (Option -S or Option -SN)
  • USB port for configuration changes and firmware upgrades
  • Sensor Calibration Extending Firmware (CEF) for parking applications
  • Standard water / dust tight, corrosion resistant enclosure (drip proof); IP54 rated with optional factory installed splash guard (Option -S)
  • 24 VDC or VAC power (ground reference)
  • RoHS compliant circuit boards

Description

The cGas Detector Analog Transmitter is a low maintenance gas monitoring device designed for use in non-explosion rated, commercial applications and is ideal for monitoring toxic, combustible and refrigerant gases.

Powered by 24 VDC or ground referenced AC, the cGas Detector has an LCD display, temperature compensation and the firmware and configuration can be upgraded in the field using the USB connection. Pre-calibrated sensors with true Plug & Play Smart Sensor technology makes replacing sensors quick and easy.

The cGas Detector comes in a standard water / dust tight, corrosion resistant ABS/ polycarbonate enclosure with a hinged, secured door. With the optional, factory installed splash guard the enclosure is IP54 rated and provides protection in water spray or wash down applications.

Note: Ethanol and Methanol are highly flammable. The cGas Detector is intended for use in non-classified areas only. Follow project specifications. If monitoring area is classified, our combustible or infrared CXT2 Explosion Proof products would be a suitable alternative.

Target Gas
Electrochemical Sensor
Ammonia (NH3), Carbon monoxide (CO), Chlorine (Cl2), Ethylene (C2H4), Ethylene oxide (C2H4O), Formaldehyde (CH2O), Hydrogen (H2), Hydrogen fluoride (HF), Hydrogen sulphide (H2S), Nitric oxide (NO), Nitrogen dioxide (NO2), Oxygen (O2), Ozone (O3), Sulphur dioxide (SO2)
Infrared Sensor
Carbon dioxide (CO2)
Catalytic Sensor
Ammonia (NH3), Hydrogen (H2), Methane (CH4), Propane (C3H8), Ethanol or Dimethyl Ether (C2H6O), Methanol (CH4O)
Solid State Sensor
Refrigerants R22, R134A, R402A, R404A, R407C, R410A, R422D, R438A, R448A, R449A, R507A, R513A, R514A, TVOCs
PID Sensors
TVOC
Mechanical
Enclosure
Black ABS / Polycarbonate, corrosion resistant
Copper coated interior to reduce RF interference
IP54 rated with splash guard installed (Option -S)
Weight
400 g / 14 oz
Size
127 x 127 x 76 mm / 5.0 x 5.0 x 3.0 inches
User Interface
Display (standard)
2-line by 16 character graphic LCD
Operating Temp: 0°C to 40°C / 32°F to 104°F
Display (Option -LT)
2-line by 16 character OLED display for cold environment applications down to -40°C / -40°F
Push Buttons
Initiate calibration and menu options with internal UP, DOWN and ENTER push buttons
USB Port
Internal port for USB memory stick for field configuration updated / firmware upgrades
Input/Output
Analog Output
One linear 4 - 20 mA analog or jumper selectable 0-10 or 2-10 volts
Relay & Buzzer (Option -RBZ)
1 SPDT relay rated 30 volts, 2 amp max with internal buzzer rated 90 dB @ 10 cm / 4 in, enable/disable
Relay (Option -RLY)
1 SPDT relay rated 30 volts, 2 amp max
Electrical
Power Requirement
16-30 VDC, 3 W**, Class 2
**dependent on sensor type
12-27 VAC, 50-60 Hz, 3 VA**, Class 2
**dependent on sensor type
Wiring
VDC (or ground referenced AC): 3-conductor 18 AWG (or larger) shielded, stranded within conduit
VAC 4-conductor shielded 18 AWG stranded within conduit
Fuse(s)
Automatic resetting thermal
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F), temperatures below 0°C / 32°F require Option-LT
Operating Humidity
15 - 90% RH non-condensing
Certifications
Conforms to
CSA-C22.2 No. 205-12, UL508 (Edition 18):2018
EMC Directive 2014/30/EU, EN 50270:2015, Type 1, EN61010
FCC. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CO and NO2 Sensor Complies with
UL2075, 2nd Edition, Standard for Gas and Vapour Detectors and Sensors
Conforms to
RoHS compliant circuit boards
Product Codes
4 Series Electrochemical Sensors
Available with relay and buzzer - add Option -RBZ
CGAS-A-CO
Single channel, internal electrochemical carbon monoxide (CO) sensor (0 - 200 ppm range), UL2075 approved sensor, LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CO-100
Single channel, internal electrochemical carbon monoxide (CO) sensor (0 - 100 ppm range), UL2075 approved sensor, LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CO-250
Single channel, internal electrochemical carbon monoxide (CO) sensor (0 - 250 ppm range), UL2075 approved sensor, LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CO-300
Single channel, internal electrochemical carbon monoxide (CO) sensor (0 - 300 ppm range), UL2075 approved sensor, LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CO-500
Single channel, internal electrochemical carbon monoxide (CO) sensor (0 - 500 ppm range), UL2075 approved sensor, LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-EETO
Single channel, electrochemical ethylene oxide (C2H4O) sensor (0 - 20 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-EH2
Single channel, electrochemical hydrogen (H2) sensor (0 - 2,000 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CH2O
Single channel, electrochemical formaldehyde (HCHO / CH2O) sensor (0 - 5 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-H2S
Single channel, electrochemical hydrogen sulphide (H2S) sensor (0 - 50 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-NO
Single channel, electrochemical nitric oxide (NO) sensor (0 - 100 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-NO2
Single channel, internal electrochemical nitrogen dioxide (NO2) sensor (0 - 10 ppm range), UL2075 approved sensor, LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-O2
Single channel, electrochemical oxygen (O2) sensor (0 - 25% volume range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SO2
Single channel, electrochemical sulphur dioxide (SO2) sensor (0 - 20 ppm range), LCD display, 4-20 mA output, 24 VDC or VAC power, plug & play smart sensor technology, low profile, public spaces enclosure
4 Series Sticky Gas Sensors
Not available with a relay and/or buzzer.
CGAS-A-CL2
Single channel, electrochemical chlorine (Cl2) sensor (0 - 5 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CL2-10
Single channel, electrochemical chlorine (Cl2) sensor (0 - 10 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CLO2
Single channel, electrochemical chlorine dioxide (ClO2) sensor (0 - 1 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-F2
Single channel, electrochemical fluorine (F2) sensor (0 - 1ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-HCL
Single channel, electrochemical hydrogen chloride (HCL) sensor (0 - 30 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-HCN
Single channel, electrochemical hydrogen cyanide (HCN) sensor (0 - 30 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-HF
Single channel, electrochemical hydrogen fluoride (HF) sensor (0 - 10.0 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-O3
Single channel, electrochemical ozone (O3) sensor (0 - 1 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
7 Series Gas Sensors
Come standard with relay and buzzer.
CGAS-A-7NH3
Single channel, electrochemical ammonia (NH3) sensor (0 - 500 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7CO
Single channel, internal electrochemical carbon monoxide (CO) sensor (0 - 200 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7CL2
Single channel, electrochemical chlorine (Cl2) sensor (0 - 5 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7CL2-10
Single channel, electrochemical chlorine (Cl2) sensor (0 - 10 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7CLO2
Single channel, electrochemical chlorine dioxide (ClO2) sensor (0 - 1 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7C2H4
Single channel, electrochemical ethylene (C2H4) sensor (0 - 200 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7C2H4-1500
Single channel, electrochemical ethylene (C2H4) sensor (0 - 1,500 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7F2
Single channel, electrochemical fluorine (F2) sensor (0 - 1ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7HCL
Single channel, electrochemical hydrogen chloride (HCL) sensor (0 - 30 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7HCN
Single channel, electrochemical hydrogen cyanide (HCN) sensor (0 - 30 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7HF
Single channel, electrochemical hydrogen fluoride (HF) sensor (0 - 10.0 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7H2S
Single channel, electrochemical sulphur dioxide (SO2) sensor (0 - 20 ppm range), LCD display, 4-20 mA output, 24 VDC or VAC power, plug & play smart sensor technology, low profile, public spaces enclosure
CGAS-A-7NO2
Single channel, internal electrochemical nitrogen dioxide (NO2) sensor (0 - 10 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-7O3
Single channel, electrochemical ozone (O3) sensor (0 - 1 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
Carbon Dioxide Gas Sensors
Available with relay and buzzer - add Option -RBZ
CGAS-A-CO2-2K
Single channel infrared carbon dioxide (CO2) sensor (0 - 2,000 ppm range), LCD display, one analog 4-20 mA output, 24 VDC or VAC power, 1 internal relay and buzzer, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CO2-5K
Single channel infrared carbon dioxide (CO2) sensor (0 - 5,000 ppm range), LCD display, one analog 4-20 mA output, 24 VDC or VAC power, 1 internal relay and buzzer, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CO2-10K
Single channel infrared carbon dioxide (CO2) sensor (0 - 10,000 ppm range), LCD display, one analog 4-20 mA output, 24 VDC or VAC power, 1 internal relay and buzzer, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CO2-5%
Single channel infrared carbon dioxide (CO2) sensor (0 - 5.0% vol range), LCD display, one analog 4-20 mA output, 24 VDC or VAC power, 1 internal relay and buzzer, Plug & Play Smart sensor replacement, water / dust tight enclosure
Solid State Refrigerant Sensors
Available with relay and buzzer. Also available with NDIR refrigerant sensor - see CGAS Detector IR Refrigerant product page.
CGAS-A-SR22
Single channel, internal solid state refrigerant (R22) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR134A
Single channel, internal solid state refrigerant (R134A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR402A
Single channel, internal solid state refrigerant (R402A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR404A
Single channel, internal solid state refrigerant (R404A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR407C
Single channel, internal solid state refrigerant (R407C) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR410A
Single channel, internal solid state refrigerant (R410A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR422D
Single channel, internal solid state refrigerant (R422D) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR438A
Single channel, internal solid state refrigerant (R438A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR448A
Single channel, internal solid state refrigerant (R448A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR449A
Single channel, internal solid state refrigerant (R449A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR507A
Single channel, internal solid state refrigerant (R507A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR513A
Single channel, internal solid state refrigerant (R513A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SR514A
Single channel, internal solid state refrigerant (R514A) sensor (0 - 2,000 ppm), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
Catalytic Combustible Gas Sensors
Available with relay and buzzer - add Option -RBZ
CGAS-A-NH3-3%
Single channel catalytic ammonia (NH3) sensor (0 - 3% vol range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure. NOTE: This is not a life safety device. This is a backup redundancy detector for monitoring potentially high levels of ammonia.
CGAS-ACC4H10-100
Single channel catalytic butane (C4H10) sensor (0 - 100% LEL range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CC2H6O-100
Single channel catalytic ethanol or dimethyl ether (C2H6O) sensor (0 - 100% LEL range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CH2-100
Single channel catalytic hydrogen (H2) sensor (0 - 100% LEL range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CCH4-100
Single channel catalytic methane (CH4) sensor (0 - 100% LEL range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CCH4O-100
Single channel catalytic methanol (CH4O) sensor (0 - 100% LEL range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-CC3H8-100
Single channel catalytic propane (C3H8) sensor (0 - 100% LEL range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
Other Sensors
Available with relay and buzzer - add Option -RBZ
CGAS-A-STVOC
Single channel, internal solid state TVOC sensor (0 - 500 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SPH
Single channel PID TVOC high range sensor (0 - 300 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-SPL
Single channel, internal PID TVOC low range sensor (0 - 30 ppm range), LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure
CGAS-A-RHT
Single channel relative humidity and temperature sensor, user configurable measurement units, LCD display, one analog 4-20 mA output, Plug & Play Smart sensor replacement, water / dust tight enclosure NOTE: the analog output can be RH or Temperature, not both
CGAS-A-R
No internal sensor, add required ESH-A Remote Sensor
Factory Options
-LT*
Low temperature package with OLED display and internal heater for cold environment applications down to -40°C / -40°F
-RBZ*
1 SPDT dry contact relay rated 30 volts, 2 amps max with internal audible alarm rated 90 dB @ 10 cm / 4 in
-RLY*
One SPDT dry contact relay, rated 30 volts, 2 amps max
-S
Splash Guard for non sticky gas sensors, factory installed, IP54 rating
-SN
Splash Guard for sticky gas sensors (Cl2, ClO2, HCl, HCN, HF, O3, PH3) and for configurations that include an internal NO2 sensor, factory installed
Important Notes on Options
*Option -LT is not available with CGAS-A-EETO
*Options -RBZ or -RLY can be added to all single channel 4-series electrochemical toxic gas sensors
*Options -RBZ or -RLY can be added to all combustible gas, solid state or PID TVOC gas sensors
*All 4 series sticky gas models cannot have a relay or buzzer.
