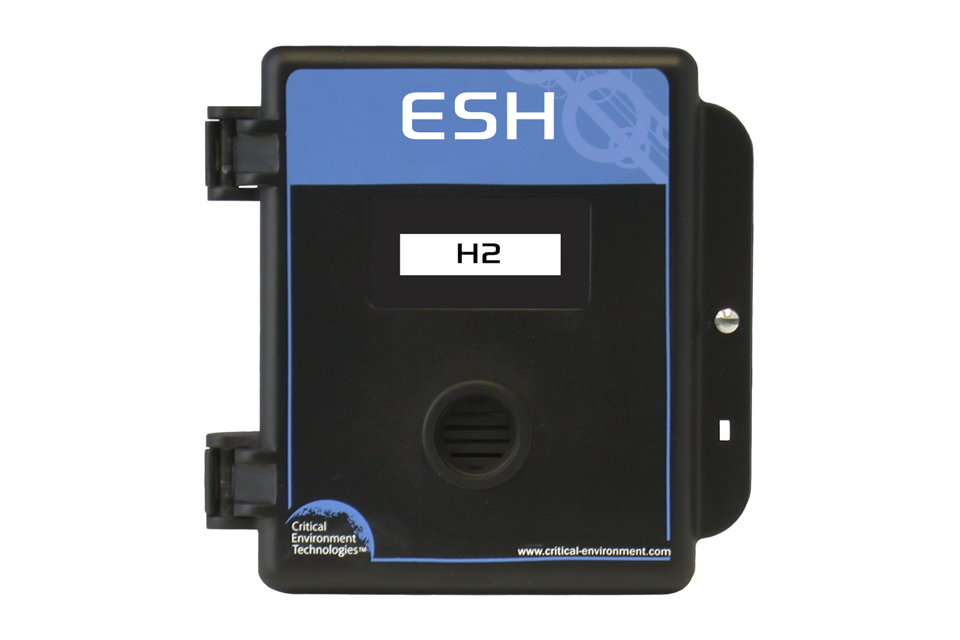

ESH-A Remote Sensor
Single analog remote sensor for flexible location monitoring.
- Allows remote location monitoring of combustible gases or TVOCs
- Current or voltage output signal
- 12 - 24 VDC supply power
- Communicates with many of CET's transmitters and cGas-SC Self Contained Controller
Description
The ESH-A Remote Sensor is a single analog remote sensor designed for flexible location monitoring of combustible gases and TVOCs. It allows remote location monitoring and communicates with many of CET's controllers and transmitters. The sensor features easy installation and maintenance, and comes in a standard water / dust tight, corrosion resistant enclosure (drip proof) with IP54 rating when the optional splash guard is installed.
Specifications
Target Gas
| Catalytic Sensors | Acetylene (C2H2), Hydrogen (H2), Methane (CH4), Propane (C3H8) |
| PID Sensors | TVOCs |
| Infrared Sensors | Propane (C3H8) |
Mechanical
| Enclosure | ABS / Polycarbonate, corrosion resistant, IP54 rated with splash guard installed |
| Weight | 181 g / 0.4 lbs |
| Size | 127 x 127 x 53 mm / 5.0 x 5.0 x 2.1 inches |
Input/Output
| Output | Current loop into a 100 ohm load, or Voltage signal of 0.40 to 2 volts |
Electrical
| Power Requirement | 12 - 24 VDC, 1 W Class 2 (do not use AC power source to power the ESH-A) |
| Current Draw | 45 mA @24 VDC (max) |
| Wiring | 4-conductor 16 - 18 AWG shielded, stranded within conduit |
Environmental
| Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Operating Humidity | 15 - 90% RH non-condensing |
Certifications
| Conforms to | CSA-C22.2 No. 205-12 / UL508 (Edition 17):2007 EMC Directive 2004/108/EC, EN 50270:2006, Type 1, EN61010 FCC. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RoHS compliant circuit boards |
Applications
Detected Gases
Configure Your ESH-A Remote Sensor
Select options below to filter configurations.16 configurations available
Showing 1–16 of 16 configurations
CET-8000-ESH
Calibration Adaptor cup for remote ESH sensor
SED-JET-A
SED-JET-A
ESH-A-CC2H6O-100
Remote Sensor C2H6O (0-100% LEL) Catalytic
ESH-A-CC3H8-100
Remote Sensor C3H8 (0-100% LEL) Catalytic
ESH-A-CC3H8-100-S
Remote Sensor C3H8 (0-100% LEL) Catalytic w/ Splash Guard
ESH-A-CC3H8-100-H
Remote Sensor C3H8 (0-100% LEL) Catalytic w/Internal heater
ESH-A-CC3H8-100-H-S
Remote Sensor C3H8 (0-100% LEL) Catalytic w/Internal Heater w/Splash Guard
ESH-A-CC2H2-100
Remote Sensor CC2H2 (20% LEL) Catalytic
ESH-A-CCH4-100
Remote Sensor CH4 (0-100% LEL) Catalytic
ESH-A-CCH4-100-S
Remote Sensor CH4 (0-100% LEL) Catalytic w/ Splash Guard
ESH-A-CCH4-100-H
Remote Sensor CH4 (0-100% LEL) Catalytic, w/ Internal Heater
ESH-A-CH2-100
Remote Sensor H2 (0-100% LEL) Catalytic
ESH-A-CH2-100-S
Remote Sensor H2 (0-100% LEL) Catalytic w/ Splash Guard
ESH-A-JET
Remote Sensor Jet Fuel -A (0-100% LEL) IR (kerosene)
ESH-A-SPH
Remote Sensor TVOC PID (0-300ppm)
ESH-A-CCH4-100-SN
Remote Sensor CH4 (0-100% LEL) Catalytic w/ Splash Guard
Not all configurations are listed here. Contact our sales team to discuss your specific requirements.
