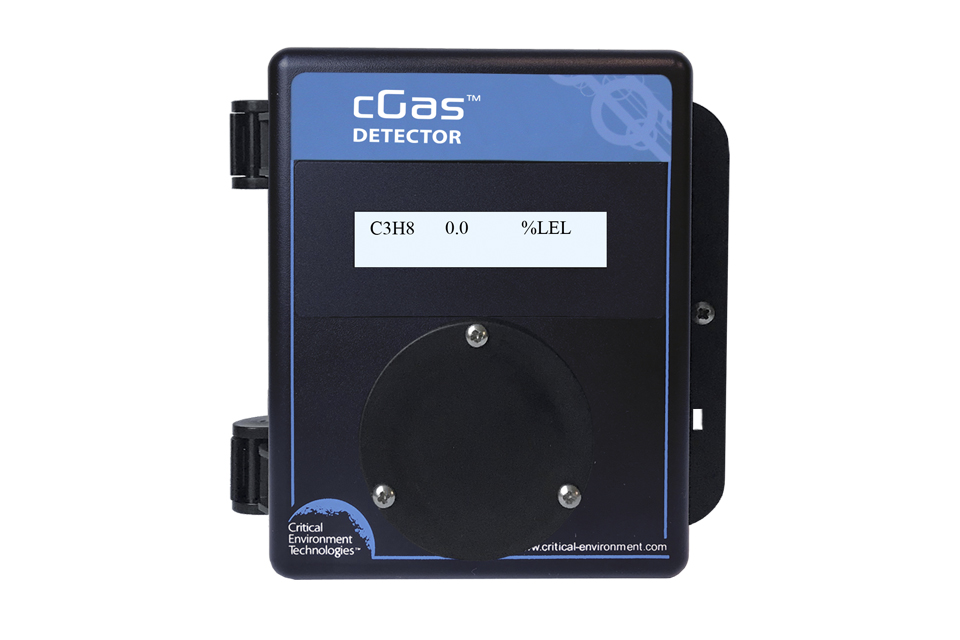

cGas Detector Digital Transmitter
One or two channel Modbus® or BACnet® gas detector with flexible customization options and Plug & Play Smart Sensor Technology.
- Up to 2 gas channel configurations
- User in the field configurable BACnet® MS/TP RS-485 or Modbus® RTU RS-485 digital output signal
- Easy Plug & Play Smart Sensor replacement at end of life, comes pre-calibrated
- Bright LCD display
Description
The cGas Detector is a digital, one or two channel gas detection transmitter that offers greater flexibility at a lower cost with customized sensor combinations and specialized options for adding only the functionality you need. It is ideal for monitoring toxic, combustible and refrigerant gases in commercial and light industrial, non-hazardous (non-explosion rated) environments.
Output is user selectable in the field with your choice of BACnet® or Modbus® for communicating with a Controller or a Building Automation System. Pre-calibrated sensors with true Plug & Play Smart Sensor technology makes replacing sensors quick and easy.
Powered by 24 VDC or ground reference AC, the digital cGas Detector it has an LCD display, temperature compensation, thermal resetting fuses and the firmware and configuration can be upgraded in the field using the USB connection. Specialized optional features include, relative humidity and temperature monitoring, low temperature operation, relay and wash-down / water spray protection.
The digital cGas Detector comes in a standard water / dust tight, corrosion resistant ABS / polycarbonate enclosure with a hinged, secured door. With the optional, factory installed standard splash guard the enclosure is IP54 rated and provides protection in water spray or wash down applications.
Specifications
Target Gas
| Electrochemical Sensors | Ammonia (NH3), Carbon monoxide (CO), Chlorine (CL2), Ethylene (C2H4), Ethylene oxide (C2H4O), Fluorine (F2), Formaldehyde (CH2O), Hydrogen (H2), Hydrogen chloride (HCL), Hydrogen cyanide (HCN), Hydrogen fluoride (HF), Hydrogen sulphide (H2S), Nitric oxide (NO), Nitrogen dioxide (NO2), Oxygen (O2), Ozone (O3), Silane (SiH4), Sulphur dioxide (SO2) |
| Infrared Sensor | Carbon dioxide (CO2) |
| Catalytic Sensors | Ammonia (NH3), Hydrogen (H2), Methane (CH4), Propane (C3H8), Ethanol or Dimethyl Ether (C2H6O), Methanol (CH4O) |
| Solid State Sensors | TVOC |
| PID Sensors | TVOC |
Mechanical
| Enclosure | Black ABS / Polycarbonate, corrosion resistant, IP54 rated with standard splash guard installed (Option -S) |
| Weight | 400 g / 14 oz |
| Size | 127 x 127 x 76 mm / 5.0 x 5.0 x 3.0 inches |
User Interface
| Display (standard) | 2-line by 16 character graphic LCD Operating Temp: 0°C to 40°C / 32°F to 104°F |
| Display (Option -LT) | 2-line by 16 character OLED display for cold environment applications down to -40°C / -40°F |
| Push Buttons | Initiate calibration and menu options with internal UP, DOWN and ENTER push buttons |
| USB Port | Internal port for USB memory stick for field firmware / configuration upgrades |
Input/Output
| Communication | User configurable in the field, BACnet® MS/TP (version 1 rev 14) RS-485 or Modbus® RTU (version 1.1b3) RS-485 |
| RH & Temperature (Option -RHT) | User selectable units DegC or DegF |
| Relay & Buzzer* | 1 SPDT relay rated 30 volts, 2 amp max with internal buzzer rated 90 dB @ 10 cm / 4 in, enable/disable |
| Relay (Option -RLY) | 1 SPDT relay rated 30 volts, 2 amp max |
Electrical
| Power Requirement | 16-30 VDC, 3 W*, Class 2 *dependent on sensor type 12-27 VAC, 50-60 Hz, 3 VA*, Class 2 *dependent on sensor type |
| Wiring | VDC or VAC (ground referenced) 4-conductor 18 - 22 AWG twisted, shielded, stranded within conduit network wiring (daisy-chain) |
| Fuse(s) | Automatic resetting thermal |
Environmental
| Operating Temperature | 0°C to 40°C (32°F to 104°F), temperatures below 0°C / 32°F require Option-LT |
| Operating Humidity | 15 - 90% RH non-condensing |
Certifications
| Conforms to | CSA-C22.2 No. 205-12, UL508 (Edition 18):2018 EMC Directive 2014/30/EU, EN 50270:2015, Type 1, EN61010 FCC. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Listed by BTL RoHS compliant circuit boards |
| CO and NO2 Sensor Complies with | UL2075, 2nd Edition, Standard for Gas and Vapour Detectors and Sensors |
