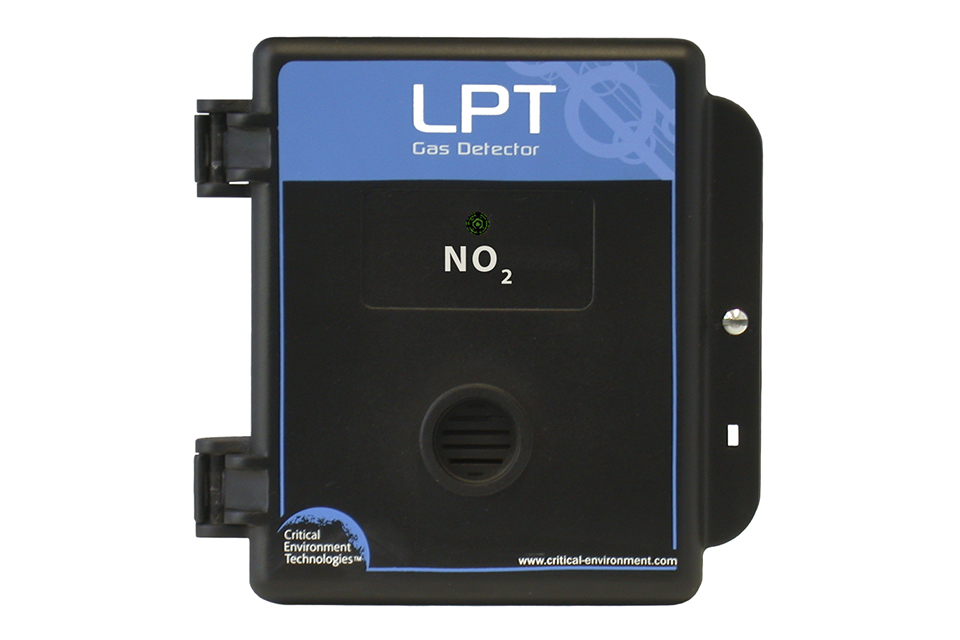

LPT Low Power Transmitter
Single channel, analog gas detector for enclosed parking facilities, recreational facilities, oxygen depletion applications.
- Single channel
- Linear 4 - 20 mA output signal
- 2-wire loop, 3-wire VDC or 4-wire VAC power
- Standard water / dust tight, corrosion resistant enclosure (drip proof)
Description
The LPT is an economical, single sensor, analog transmitter for monitoring toxic gases non-hazardous, non-explosion proof rated commercial and light industrial applications. This basic transmitter is designed to be part of a fixed system with a Controller for applications such as car parks, vehicle repair, aquatic centers, ice rinks and oxygen depletion applications. It features a two-wire loop power, three-wire VDC or four-wire VAC power, 4 - 20 mA linear output signal, thermal resetting fuses, temperature compensation, and visual LED indication for power and fault conditions, all in a RoHS compliant package. Comes standard with a water / dust tight, corrosion resistant ABS / polycarbonate enclosure with a hinged, secured door. With the optional splash guard installed, the enclosure is IP54 rated and ideal for use in water spray or wash down applications.
Automated calibration and other maintenance procedures are simple and easily performed in the field. For parking garage applications, our proprietary Calibration Extending Firmware (CEF) takes into account the aging of the sensors so that less frequent calibrations are acceptable in non-critical applications.
Specifications
Target Gas
| Gas Sensors | Ammonia (NH3), Carbon monoxide (CO), Nitrogen dioxide (NO2), Chlorine (Cl2), Oxygen (O2), Sulphur dioxide (SO2) |
Mechanical
| Enclosure | ABS / Polycarbonate, corrosion resistance, IP54 rated with optional splash guard installed |
| Weight | 200 g / 0.44 lbs |
| Size | 127 x 127 x 53 mm / 5.0 x 5.0 x 2.1 inches |
User Interface
| Display | Single color status LED |
Input/Output
| Output | Linear 4 - 20 mA Maximum 216 Ω load (wiring plus termination resistor) at 16 VDC Maximum 316 Ω load (wiring plus termination resistor) at 12 VAC |
Electrical
| Power Requirement | 2-wire mode: 16 - 30 VDC, 1 W, Class 2, 3-wire mode: 16 - 30 VDC, 1 W, Class 2, 4-wire mode: 12 - 27 VAC, 50-60 Hz, 1 VA, Class 2 |
| Current Draw | 25 mA @ 24 VDC (max) |
| Wiring | VDC 2-conductor shielded 16 - 18 AWG stranded within conduit, VDC 3-conductor shielded 16 - 18 AWG stranded within conduit, VAC 4-conductor 16 - 18 shielded 16 - 18 AWG stranded within conduit |
| Fuses | Thermal, resetting |
Environmental
| Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Operating Humidity | 15 - 90% RH non-condensing |
Certifications
| Conforms to | CSA-C22.2 No. 205-M1983 (R2009), UL508 (Edition 17):2007 EMC Directive 2004/108/EC, EN 50270:2006, Type 1, EN61010 FCC. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RoHS compliant circuit boards |
Applications
LPT Low Power Transmitter Options
17 options available
Showing 1–17 of 17 configurations
LPT-CL2
CL2, Detector, 0-5ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-CL2-SN
CL2, Detector, 0-5ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx) with SN
LPT-TCO-100
CO, Detector, 0-100ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-TCO
CO, Detector, 0-200ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-TCO-S
CO, Detector, 0-200ppm 4-20mA out / 24VDC/AC input /Splash Guard
LPT-TCO-IH-S
CO, Detector, 0-200ppm 4-20mA out / 24VDC/AC input w/ HTR & Sp Grd
LPT-TCO-C
CO, Detector, 0-200ppm 4-20mA out / 24VDC/AC input(Fantech)
LPT-H2S
H2S, Detector, 0-50ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-NH3
NH3, Detector, 0-500ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-NH3-S
NH3, Detector, 0-500ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-END-S
NO2, Detector, 0-10ppm 4-20mA out / 24VDC/AC input w/Splash Guard
LPT-END-SN
NO2, Detector, 0-10ppm 4-20mA out / 24VDC/AC input w/Splash Guard Nose
LPT-END
NO2, Detector, 0-10ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-END-IH-S
NO2, Detector, 0-10ppm 4-20mA out / 24VDC/AC input w/ HTR & Sp Grd
LPT-O2
O2, Detector, 0-25% volume, 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-O3
O3, Detector, 0-1ppm 4-20mA out / 24VDC/AC input (2,3 or 4 wire trx)
LPT-T-R
Trx w/Modbus + Remote ESH-A
Not all configurations are listed here. Contact our sales team to discuss your specific requirements.
Documents
Catalog
PDF • 1.1 MB • Brochures
LPT Datasheet
PDF • 276 KB • Datasheets
Splash Guard (Option -S) Datasheet
PDF • 353 KB • Datasheets
Splash Guard for Sticky Gases (Option -SN) Datasheet
PDF • 317 KB • Datasheets
Quick Reference Guide to Calibrating the LPT
PDF • 80 KB • Guidelines
Standard Calibration
PDF • 617 KB • Guidelines
LPT Operation Manual
PDF • 633 KB • Manuals
Product Spec: LPT-CL2 Electrochemical Chlorine Sensor
PDF • 136 KB • Product Specs
Product Spec: LPT-END Nitrogen Dioxide Electrochemical Sensor
PDF • 183 KB • Product Specs
Product Spec: LPT-NH3 Electrochemical Ammonia Sensor
PDF • 122 KB • Product Specs
Product Spec: LPT-O2 Electrochemical Oxygen Sensor
PDF • 115 KB • Product Specs
Product Spec: LPT-TCO Carbon Monoxide Electrochemical Sensor
PDF • 112 KB • Product Specs
