RSW Remote Switch
Enables manual operation of equipment with emergency shutdown, activation or reset as needed. Easy push button action, satisfies compliance as required with some standards.
- Enables manual operation of equipment with emergency shutdown, activation or reset as needed
- Easy push button action
- Latching safety mechanism
- Satisfies compliance as required with some standards
Description

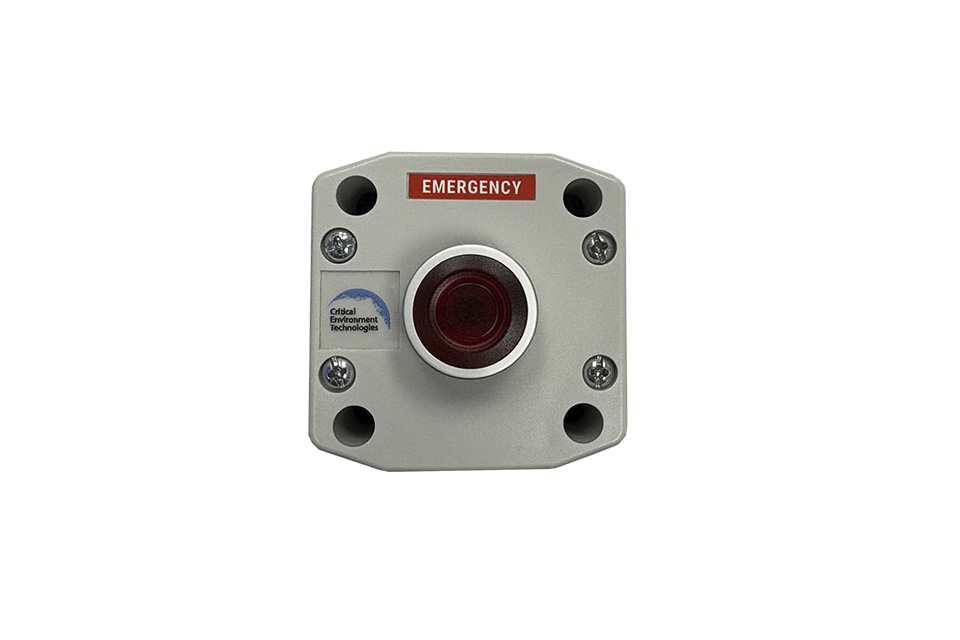

The RSW-E emergency stop remote switch enables manual control of equipment during emergencies, supporting both electrical and mechanical shutdowns or horn/strobe activation. Restarting the equipment is possible by manually activating the button again. Ideal for compliance with boiler room or machinery room standards that require manual control of the equipment outside the room door.

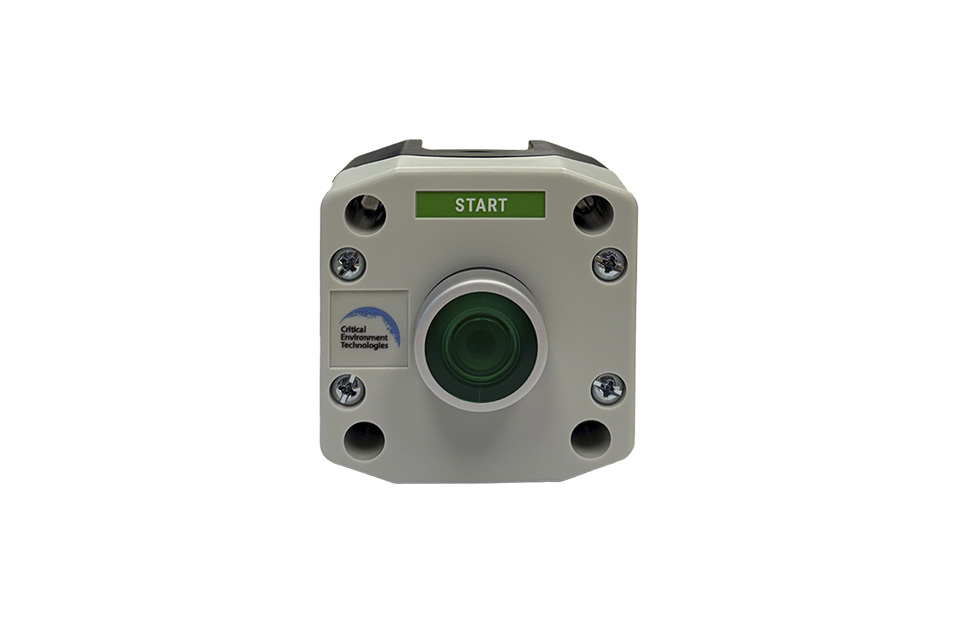

The RSW-S manual reset remote switch can be used to manually activate the ventilation system during maintenance or cleaning or to prepare an area for entry after a shutdown, to manage airflow for temperature or humidity or to test the ventilation system. Sometimes, only a specific area needs ventilation, and manual control allows for a targeted response without triggering full-system activation.
Specifications
Mechanical
| Size | 75 W x 75 H x 69 D mm 2.95 W x 2.95 H x 2.72 D in |
| Actuator Type | Round button housed in a metal ring |
| Button Life | One million operations |
| Contact Block Life | One million operations |
| Mode of Operation | 1 NO contact 1 NC contact |
| Switch Function | ON-OFF |
| Features | Latching |
Electrical
| Circuit | SPST-NC |
| Relay Rating | 3A @240 VAC |
| Thermal Current | Ith 10A 50/60HZ Ith 10A (enclosed) |
| Insulation Voltage | Ui 600V |
| Short Circuit Current | 1000A |
| Contact Resistance | 50m Ohm (initial) |
Environmental
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
Certifications
| IP Rating | IP65 |
Applications
Detected Gases
RSW Remote Switch Options
2 options available
Showing 1–2 of 2 configurations
RSW-E
Remote Switch for Manual Shutdown
RSW-S
Remote Switch for Manual Activation
Not all configurations are listed here. Contact our sales team to discuss your specific requirements.
