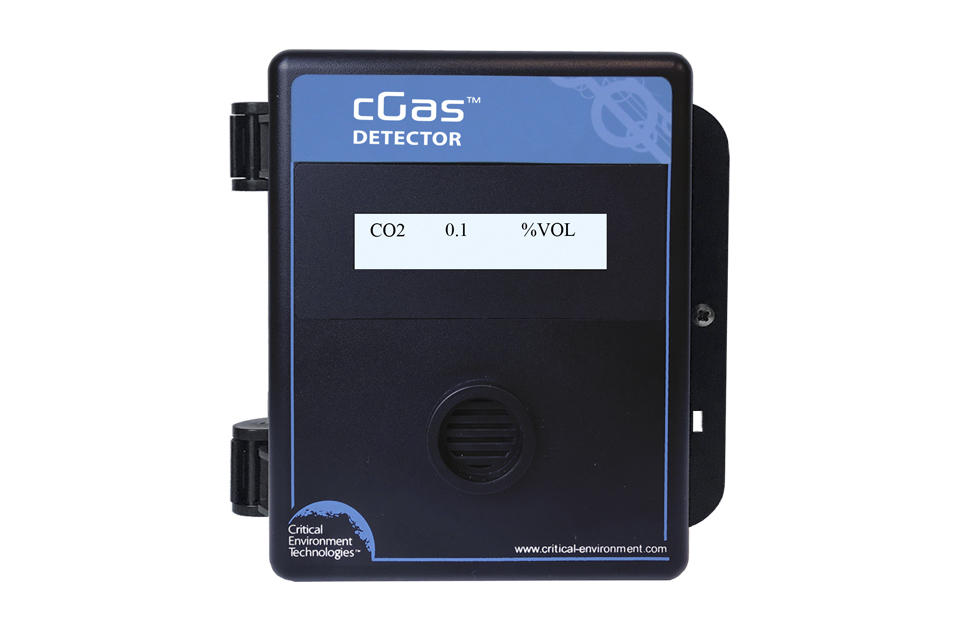

cGas Detector Analog Transmitter
Single channel, analog gas detector with Plug & Play Smart Sensor Technology.
- One 4-20 mA analog output or jumper selectable 0-10 or 2-10 volts
- Easy Plug & Play Smart Sensor replacement at end of life, comes pre-calibrated
- Bright LCD display
- Optional internal 2A SPDT dry contact relay, with or without internal buzzer (Option -RBZ or Option -RLY)
Description
The cGas Detector Analog Transmitter is a low maintenance gas monitoring device designed for use in non-explosion rated, commercial applications and is ideal for monitoring toxic, combustible and refrigerant gases.
Powered by 24 VDC or ground referenced AC, the cGas Detector has an LCD display, temperature compensation and the firmware and configuration can be upgraded in the field using the USB connection. Pre-calibrated sensors with true Plug & Play Smart Sensor technology makes replacing sensors quick and easy.
The cGas Detector comes in a standard water / dust tight, corrosion resistant ABS/ polycarbonate enclosure with a hinged, secured door. With the optional, factory installed splash guard the enclosure is IP54 rated and provides protection in water spray or wash down applications.
Note: Ethanol and Methanol are highly flammable. The cGas Detector is intended for use in non-classified areas only. Follow project specifications. If monitoring area is classified, our combustible or infrared CXT2 Explosion Proof products would be a suitable alternative.
Specifications
Target Gas
| Electrochemical Sensors | Ammonia (NH3), Carbon monoxide (CO), Chlorine (CL2), Ethylene (C2H4), Ethylene oxide (C2H4O), Fluorine (F2), Formaldehyde (CH2O), Hydrogen (H2), Hydrogen chloride (HCL), Hydrogen cyanide (HCN), Hydrogen fluoride (HF), Hydrogen sulphide (H2S), Nitric oxide (NO), Nitrogen dioxide (NO2), Oxygen (O2), Ozone (O3), Silane (SiH4), Sulphur dioxide (SO2) |
| Infrared Sensors | Carbon dioxide (CO2) |
| Catalytic Sensors | Ammonia (NH3), Hydrogen (H2), Methane (CH4), Propane (C3H8), Ethanol or Dimethyl Ether (C2H6O), Methanol (CH4O) |
| Solid State Sensor | TVOC |
| PID Sensors | TVOC |
Mechanical
| Enclosure | Black ABS / Polycarbonate, corrosion resistant, IP54 rated with splash guard installed (Option -S) |
| Weight | 400 g / 14 oz |
| Size | 127 x 127 x 76 mm / 5.0 x 5.0 x 3.0 inches |
User Interface
| Display (standard) | 2-line by 16 character graphic LCD Operating Temp: 0°C to 40°C / 32°F to 104°F |
| Display (Option -LT) | 2-line by 16 character OLED display for cold environment applications down to -40°C / -40°F |
| Push Buttons | Initiate calibration and menu options with internal UP, DOWN and ENTER push buttons |
| USB Port | Internal port for USB memory stick for field configuration updated / firmware upgrades |
Input/Output
| Analog Output | One linear 4 - 20 mA analog or jumper selectable 0-10 or 2-10 volts |
| Relay & Buzzer (Option -RBZ) | 1 SPDT relay rated 30 volts, 2 amp max with internal buzzer rated 90 dB @ 10 cm / 4 in, enable/disable |
| Relay (Option -RLY) | 1 SPDT relay rated 30 volts, 2 amp max |
Electrical
| Power Requirement | 16-30 VDC, 3 W**, Class 2 **dependent on sensor type 12-27 VAC, 50-60 Hz, 3 VA**, Class 2 **dependent on sensor type |
| Wiring | VDC (or ground referenced AC) 3-conductor 16 - 18 AWG shielded, stranded within conduit VAC 4-conductor shielded 16 - 18 AWG stranded within conduit |
| Fuse(s) | Automatic resetting thermal |
Environmental
| Operating Temperature | 0°C to 40°C (32°F to 104°F), temperatures below 0°C / 32°F require Option-LT |
| Operating Humidity | 15 - 90% RH non-condensing |
Certifications
| Conforms to | CSA-C22.2 No. 205-12, UL508 (Edition 18):2018 EMC Directive 2014/30/EU, EN 50270:2015, Type 1, EN61010 FCC. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. |
| CO and NO2 Sensor Complies with | UL2075, 2nd Edition, Standard for Gas and Vapour Detectors and Sensors |
| Conforms to | RoHS compliant circuit boards |
